Dji Zenmuse S1
- Multiple broadcast modes
- Directional voice capture
- Environmental noise cancelling
- Powerful sound and extended reach
- Precise control, targeted broadcasting
Warranty :
DJI Official 1 Year Warranty
Distributor :
DJI Authorized Dealer
Estimated Delivery :
Delivery Will be Within 7 Days
DJI's First Spotlight for Multi-Payload Drone Platforms
Zenmuse S1
Light Up The Night

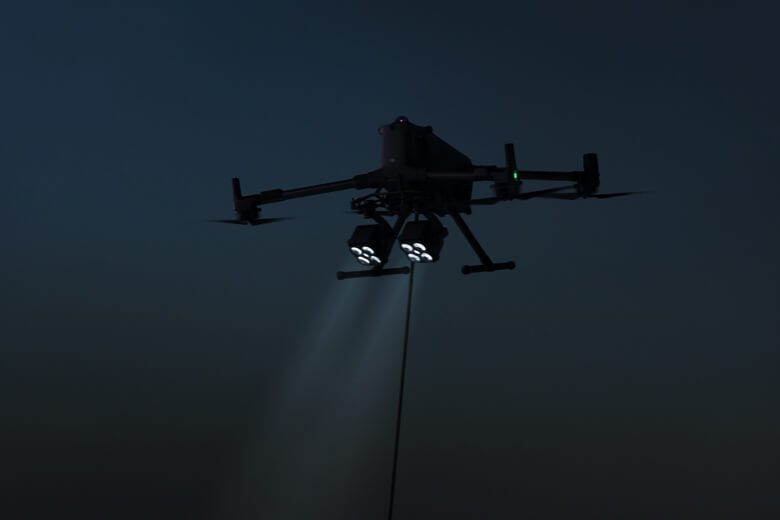

Zenmuse S1 is DJI's first spotlight designed for multi-payload drone platforms, compatible with DJI Matrice 400, Matrice 350 RTK and Matrice 300 RTK. Utilizing the LEP technology, it offers high brightness and long illumination distance, and supports multiple lighting modes. This makes it ideal for public safety, emergency rescue, inspection, and other nighttime operations.
Multiple Lighting Modes
Low Beam Mode
Provides a 15° field of view (FOV) [2] within a distance of 150 meters [1], covering the illumination range of a camera at 5x zoom or above. [3] This mode is suitable for most short-distance search and inspection needs.
High Beam Mode
Utilizing the LEP (Laser Excited Phosphor) technology for enhanced light penetration, this mode offers a 4° field of view (FOV) [4] at a distance of 300 meters. [1] It covers the illumination range of a camera at 15x zoom or above, [3] enhancing efficiency in emergency rescue and public safety operations.
Both On Mode
Engages both low and high beams simultaneously, delivering greater central illuminance than the High Beam mode alone. It maintains the FOV of the Low Beam mode while extending the observation distance up to 500 meters. [1] This mode offers maximum illumination coverage for comprehensive situational awareness.
Strobe Mode
Zenmuse S1 supports high-frequency strobing to effectively alert and draw attention from target individuals, making it particularly useful for signaling in emergency rescue and public safety scenarios.
Brightness Meets Energy Efficiency
Zenmuse S1 delivers a maximum central illuminance of 40 lux at 100 meters [5], providing ample lighting in dark environments to clearly distinguish details of the subjects. Additionally, the power consumption in the High Beam mode is only 24 W [6], reducing the power load on the drone and helping to maintain the flight time.
Intelligent Beam Alignment
When mounted with the Zenmuse H30 Series on Matrice 400, Zenmuse S1 employs gimbal synchronization and software algorithms to automatically calibrate its optical center in real time, intelligently aligning with the camera view and effectively preventing light deviation.
Reliable and Intuitive
Payload Protection

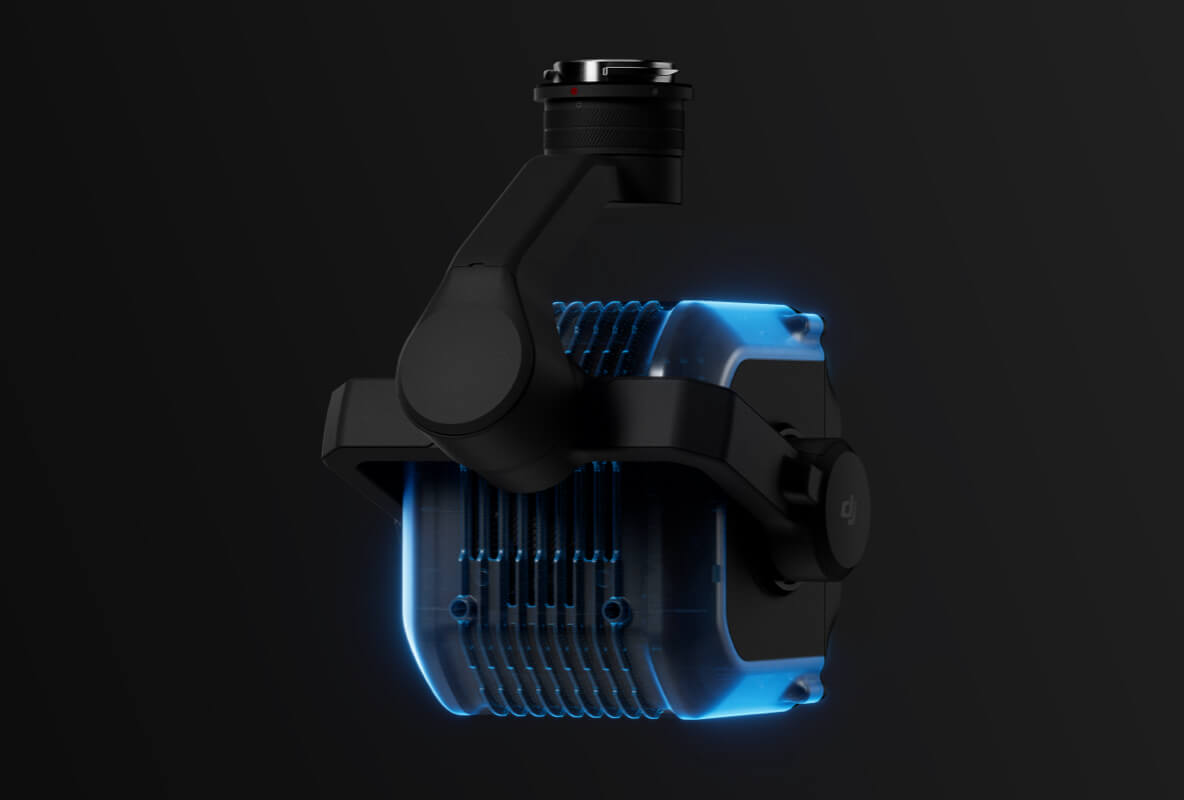

Zenmuse S1 is equipped with multiple protection mechanisms for temperature, overcurrent, power, and more, enhancing the product's reliability and lifespan.
Payload Protection
Zenmuse S1 is equipped with multiple protection mechanisms for temperature, overcurrent, power, and more, enhancing the product's reliability and lifespan.
Synchronized Control
When two Zenmuse S1 are mounted on Matrice 400, both spotlights can be controlled at the same time, including turning the light on/off, brightness adjustment, and gimbal angle control. This feature is ideal for scenarios requiring large-area illumination, such as nighttime search and rescue operations.
Collaborative Ground and Air Operations

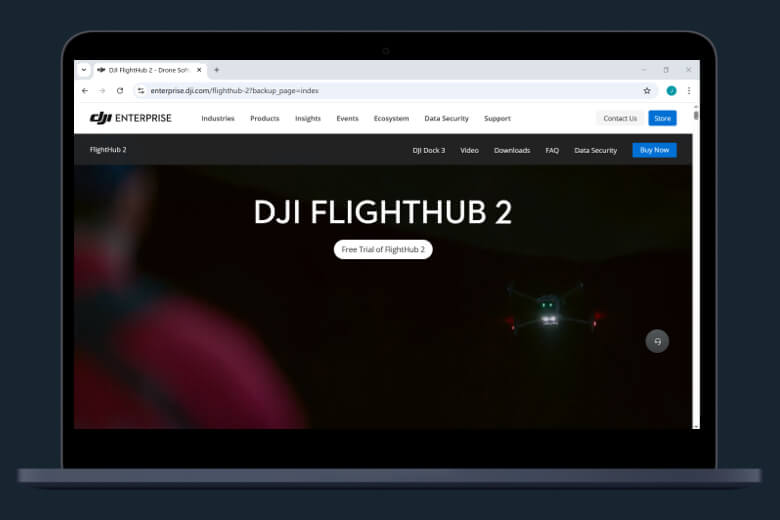

When used with Matrice 400 and the Zenmuse H30 Series, Zenmuse S1 supports remote real-time video viewing and spotlight control through DJI FlightHub 2.
Strong Environmental Adaptability

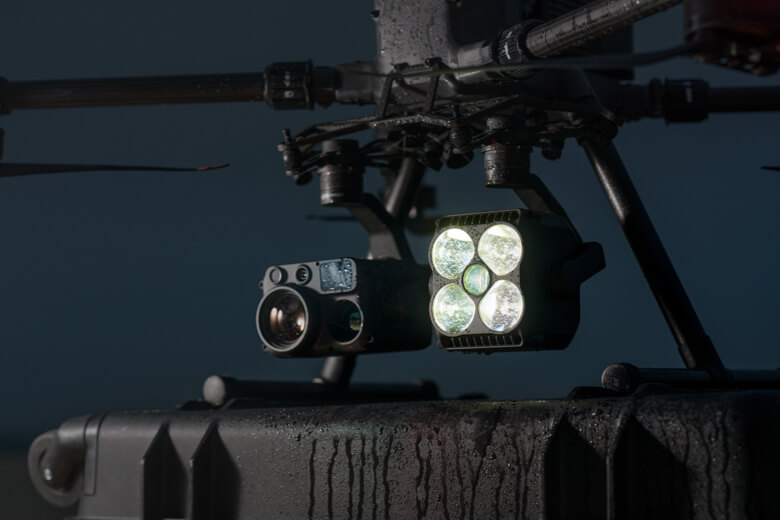

With an IP54 rating for dust and water resistance, [8] Zenmuse S1 can operate in ambient temperatures ranging from -20° to 40° C (-4° to 104° F), making it adaptable to various operating environments.
Flexible Mounting,
Lightweight Build

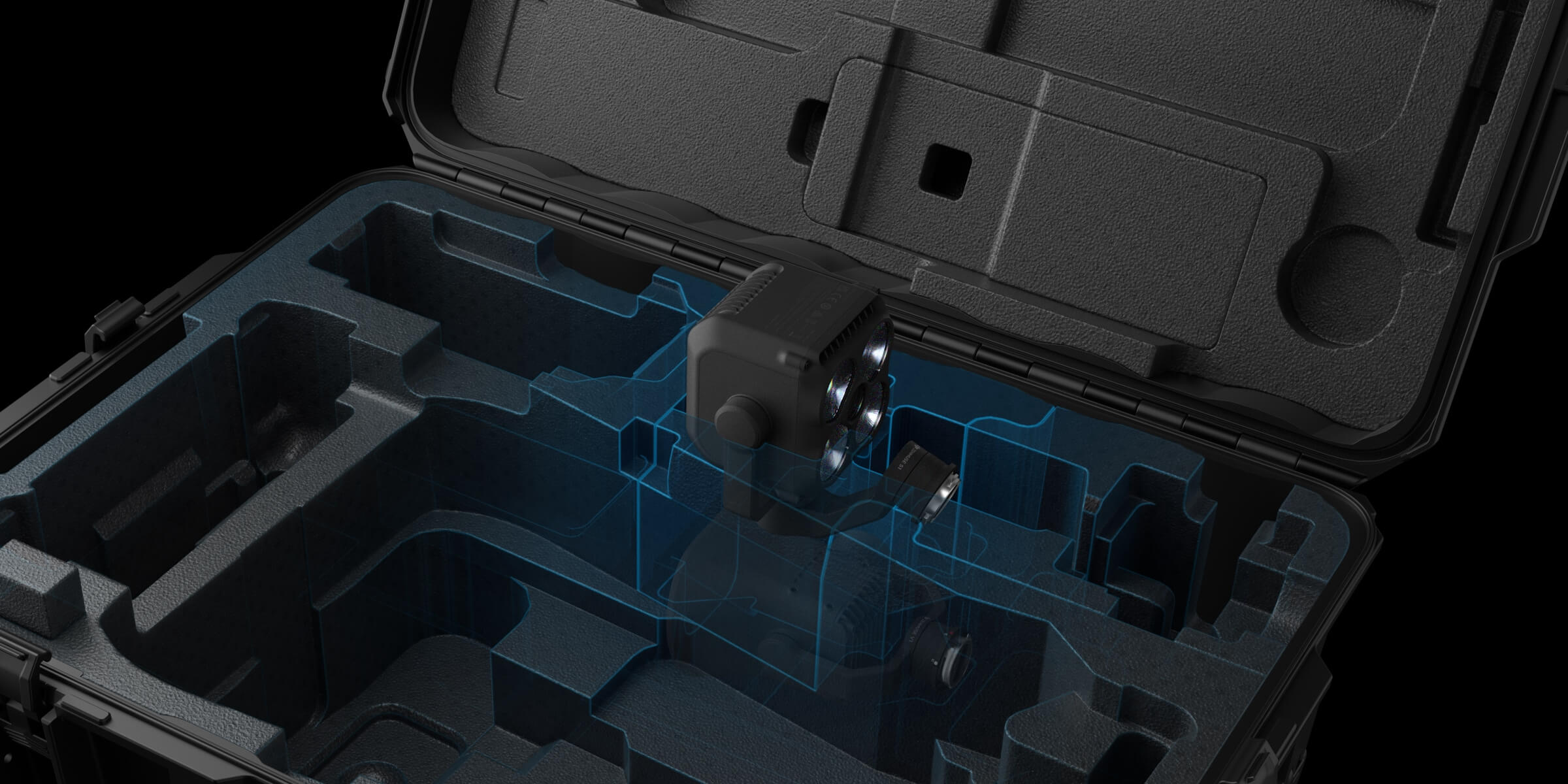

Zenmuse S1 can be mounted on any gimbal connector of Matrice 400, Matrice 350 RTK, or Matrice 300 RTK, accommodating various operational needs. Weighing only 0.76 kg, [9] it is compact and portable, and it also fits into the carrying case of Matrice 400.
Open Developer Ecosystem
MSDK
With Mobile SDK, users can quickly integrate Zenmuse S1's features into their self-developed mobile apps, unlocking the capabilities of your drone platform to meet specialized needs.
PSDK
When used with Matrice 400, users can quickly integrate the features of Zenmuse S1 via Manifold 3 and Payload SDK, expanding the drone's applications to a wider range of fields.
Specifications
Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.
35 lux @ 100 m (Matrice 350 RTK/Matrice 300 RTK)
Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft and using the Both On mode.
The High Beam mode has an FOV of 4°, corresponding to an illuminated area of approximately 38 m² at a distance of 100 m.
